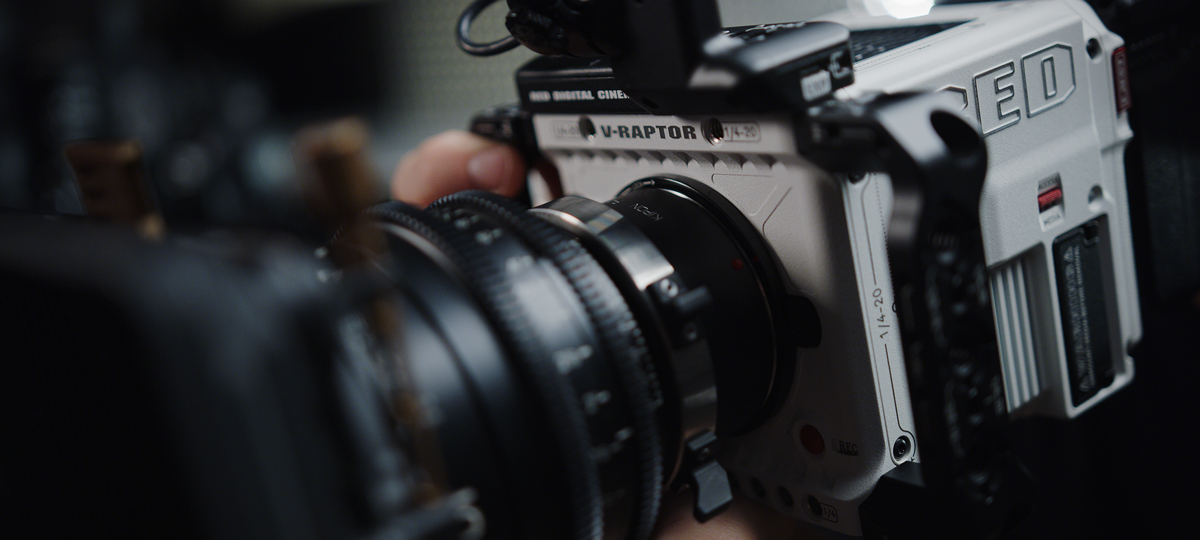

LIVE Q&A Replay
V-RAPTOR PACKS
The V-RAPTOR will launch with two pre-bundled packs including a Starter Pack that is perfect for owner-operators and run-and-gun style shooting and a Production Pack which is well-suited for professional and studio work.

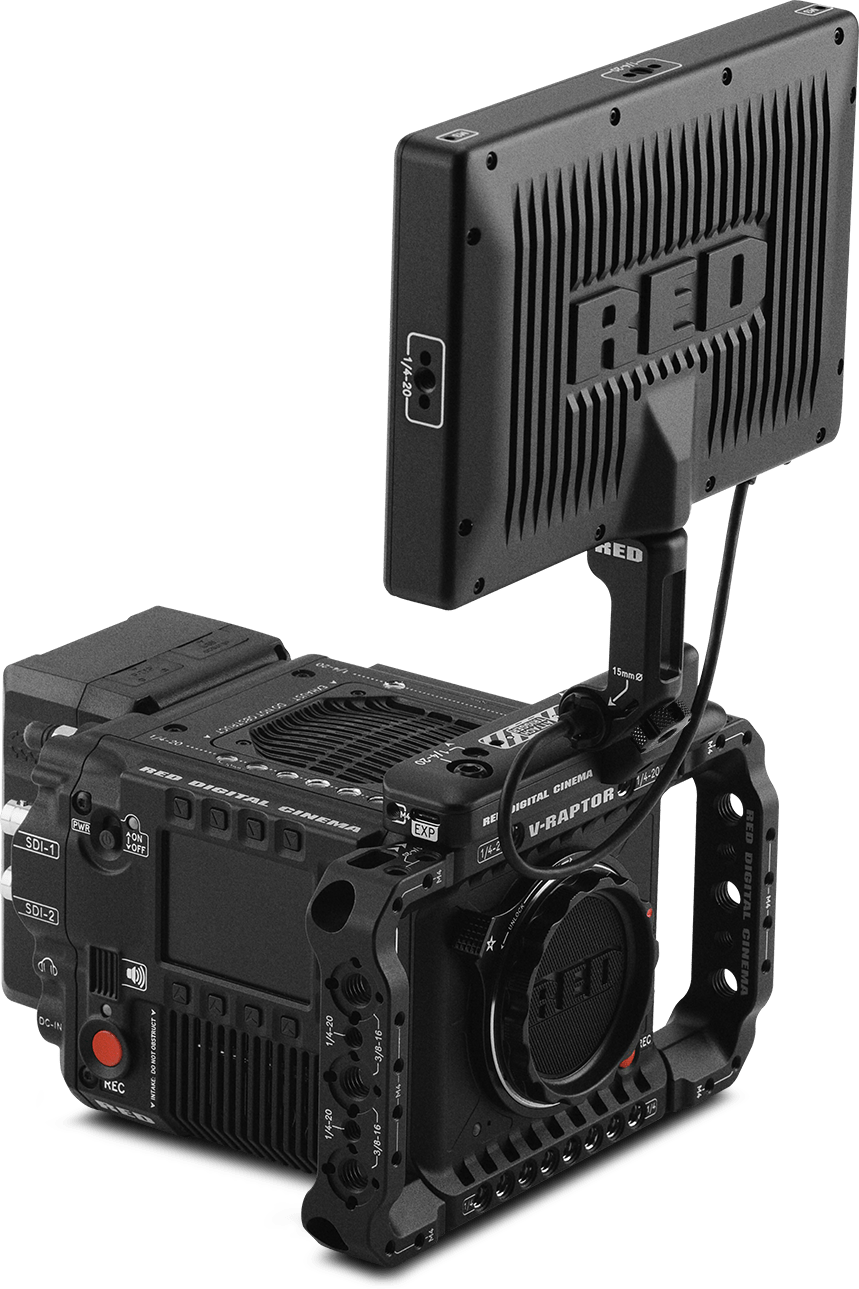

V-Raptor Starter Pack
- - 1x V-RAPTOR 8K VV Camera System
- - 1x DSMC3 RED Touch 7" LCD
- - 1x RED PRO CFexpress 660GB
- - 1x RED CFexpress Card Reader
- - 2x REDVOLT MICRO-V
- - 1x RED Compact Dual V-Lock Charger
- - 2x V-RAPTOR Wing Grip
- - 1x RED EXT-to-Timecode Cable 3'

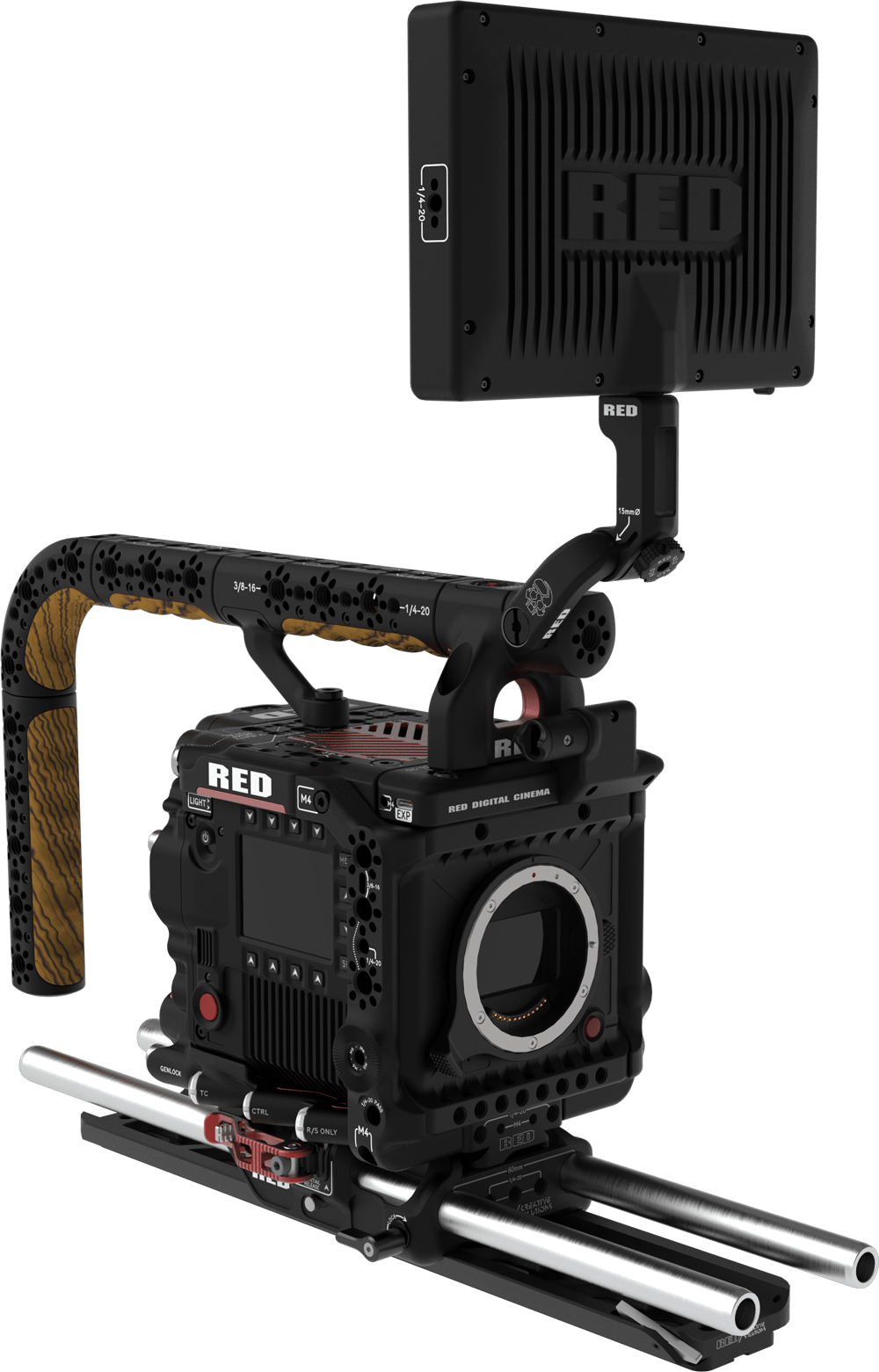

V-Raptor Production Pack
Coming Soon

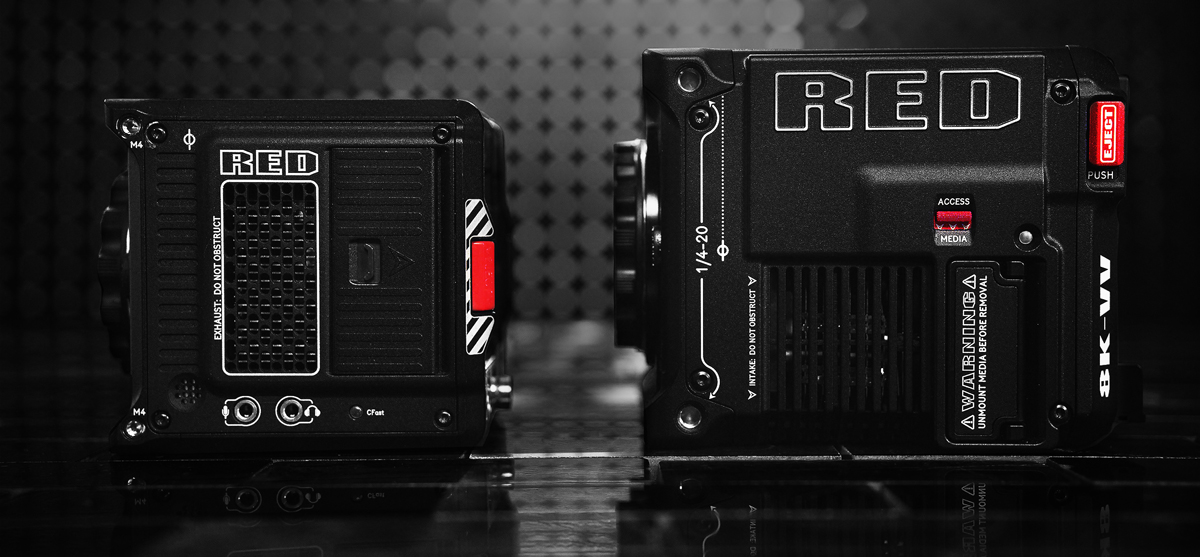

KOMODO and V-RAPTOR
FEATURING UNMATCHED PERFORMANCE AND AMAZINGLY SMALL FORM FACTORS
技术规格
V-RAPTOR is the most advanced RED camera ever and features a multi-format sensor with the ability to shoot 8K VV or 6K S35 and capture up to 600fps at 2K
| 感光器类型 |
V-RAPTOR™ 8K VV 35.4 Megapixel CMOS
|
|---|---|
| 有效像素 |
8192 × 4320
|
| 感光器尺寸 |
40.96 mm x 21.60 mm (对角线: 46.31 mm)
|
| 动态范围 |
17 +
|
| Mount Type |
Integrated RF mount with RF lens support
Supports Canon EF lenses via compatible Canon RF to EF mount adapters
Accepts other Canon RF mount-based lens adaptors for diverse lens choices
|
| 最大数据速率 |
Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1]
|
| REDCODE® RAW MAX FRAME RATES |
120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
|
| BEST AVAILABLE REDCODE® SETTINGS |
REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
|
| REDCODE® RAW ACQUISITION FORMATS |
8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
|
| 构造材质 |
铝合金
|
| 重量 |
4.03 lbs (without body cap and CFexpress card)
|
| Dimensions |
6" x 4.25" x 4.25" (L x W x H)
|
| BATTERY TYPE |
Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1]
|
| DC POWER INPUT |
11-17V via 6-pin DC-IN
|
| 工作温度 |
0°C to 40°C (32°F to 104°F)
|
| 储存温度 |
–20°C to 50°C (–4°F to 122°F)
|
| 相对湿度 |
0% to 85% 非冷凝状态
|
| 色彩管理 |
Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import of CDLs
|
| 音频 |
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz
|
| 远程控制 |
Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter required) allowing remote camera control, live MJPEG preview video feed and remote media offload
|
| 监视器输出 |
Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
|
| 监视器选项 |
DSMC3 RED® Touch 7.0” LCD
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
Integrated 2.4" LCD for camera control (no preview video)
|
| RED Control |
Access full camera controls and live preview from iOS or Android devices
Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C
|
1. For more information on compatible accessories, go to red.com/third-party-accessories
* Tech specs reflect both current and projected information. Everything is subject to change.
* Tech specs reflect both current and projected information. Everything is subject to change.

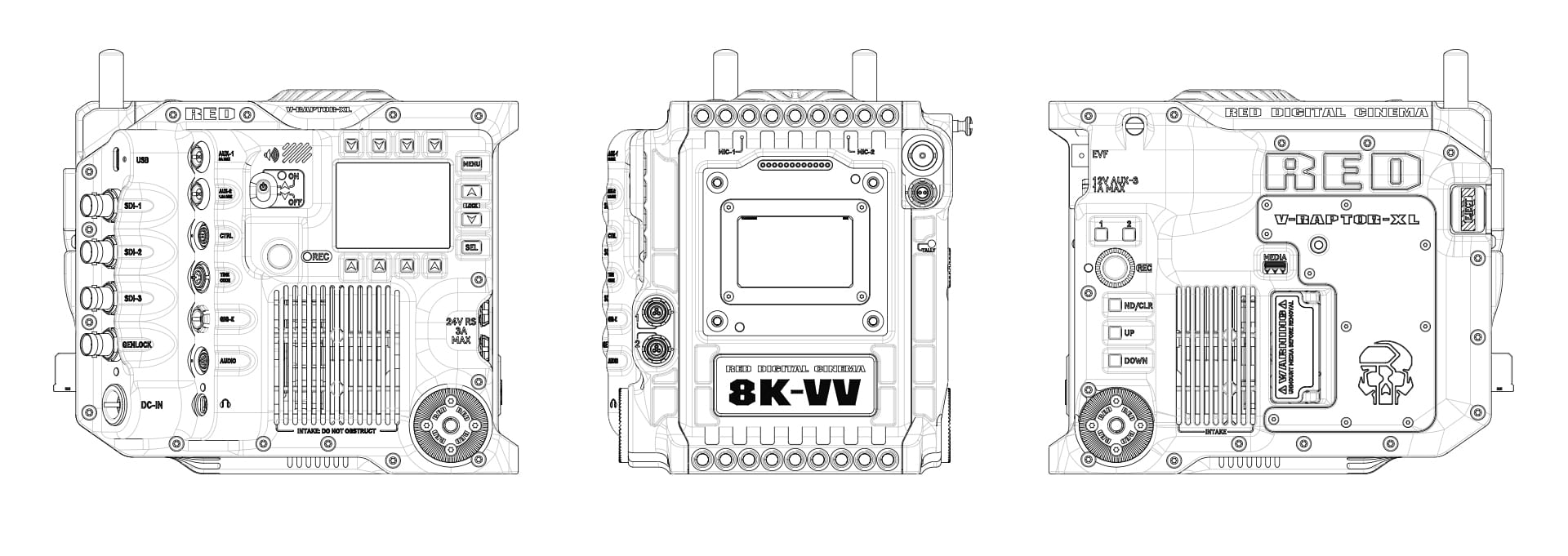

COMING 2022
V-RAPTOR XL
